NexDiag - NexPTG Professional - Paint Thickness Gauge

NexDiag - NexPTG Professional is a professional paint thickness gauge with app control that can even perform precise measurements on curved surfaces.

NexPTG Professional is the most innovative wireless paint thickness gauge on the market. This device performs 10 measurements per second and delivers highly accurate readings. Moreover, it can check the paint thickness on virtually all vehicles. NexPTG Professional automatically detects and tests the paint coating on steel and aluminum components.

The NexPTG Professional is the most advanced version of the NexDiag paint thickness gauges, enabling fast, accurate, and intuitive vehicle inspections. This version features a movable head that allows precise measurements on concave and convex parts.

0 - 2500 µmRange of measurement	1 µmMeasurement resolution	SAPLExtended
Steel, Galvanized steel, AluminiumSubstrate testing	Bluetooth 4.0 LECommunication with the application	Movable/Spherical probeCurve measurement

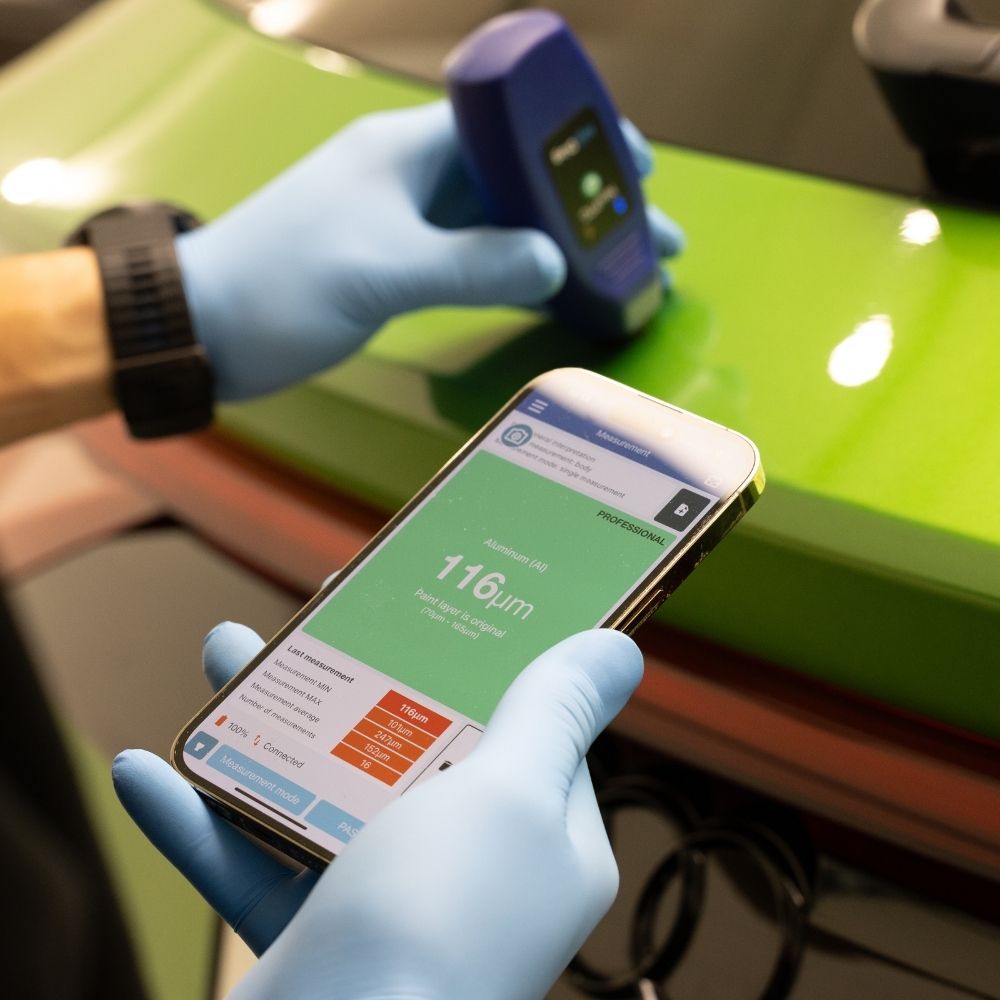

With the advanced technology of the NexPTG Professional, you can even perform measurements on curved surfaces.

Thanks to the use of a movable head and a profiled probe housing, the impact of vibrations on readings from convex or concave inner and outer vehicle parts has been eliminated. The combination of the gauge and smartphone offers you enormous possibilities that conventional devices cannot reach.

The Professional version performs measurements with even greater accuracy than the Standard and Advanced versions. Additionally, the Professional display offers a range of options that help you inspect a vehicle more efficiently and effectively, including:

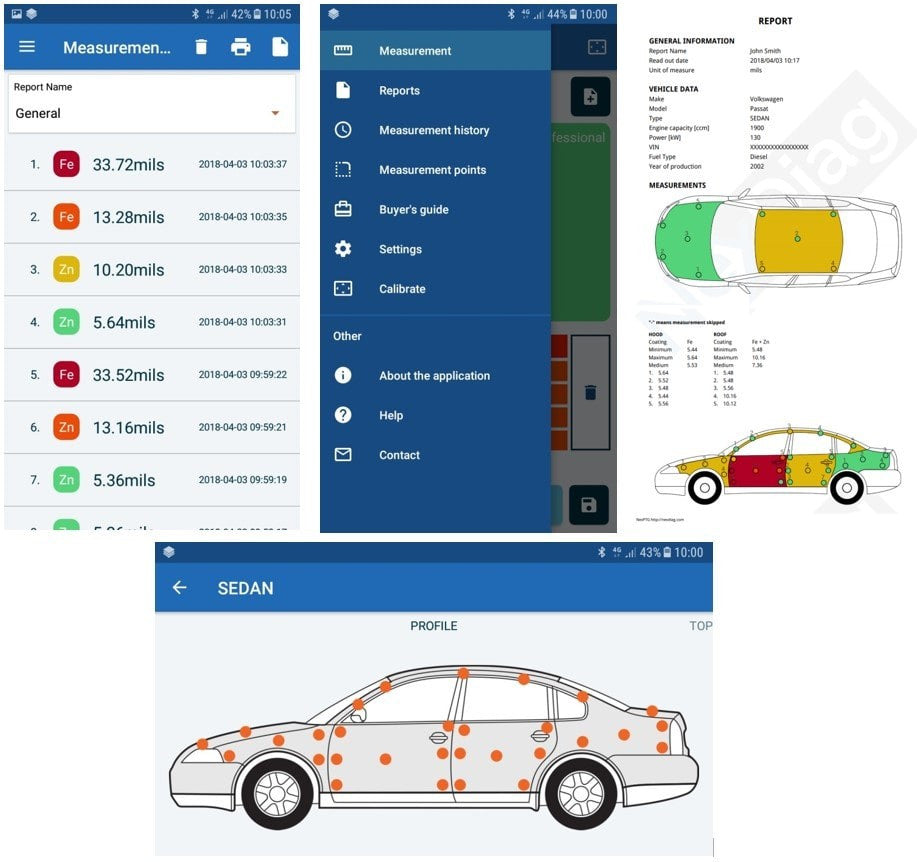

• Suggested measurement points
• Buying guide
• Export of measurement history

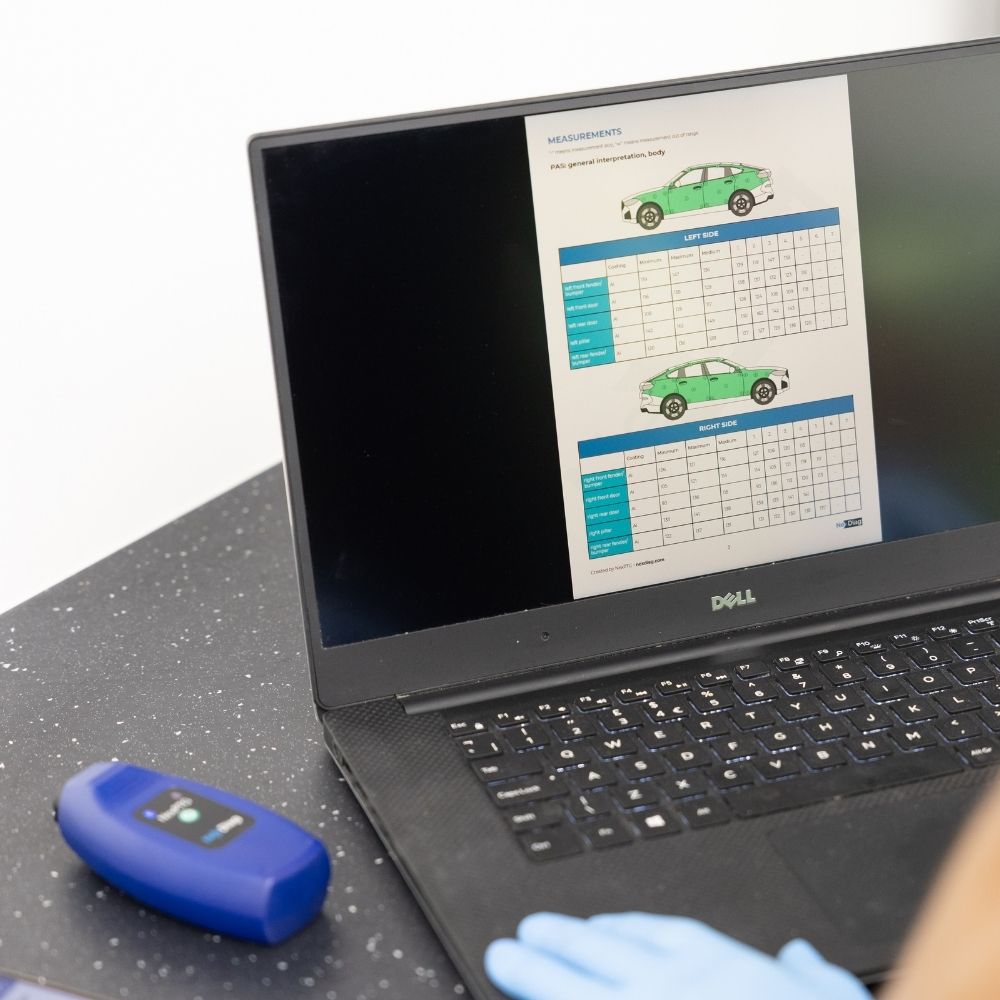

• Report creation

This is the most advanced paint thickness gauge on the market.

Professional software

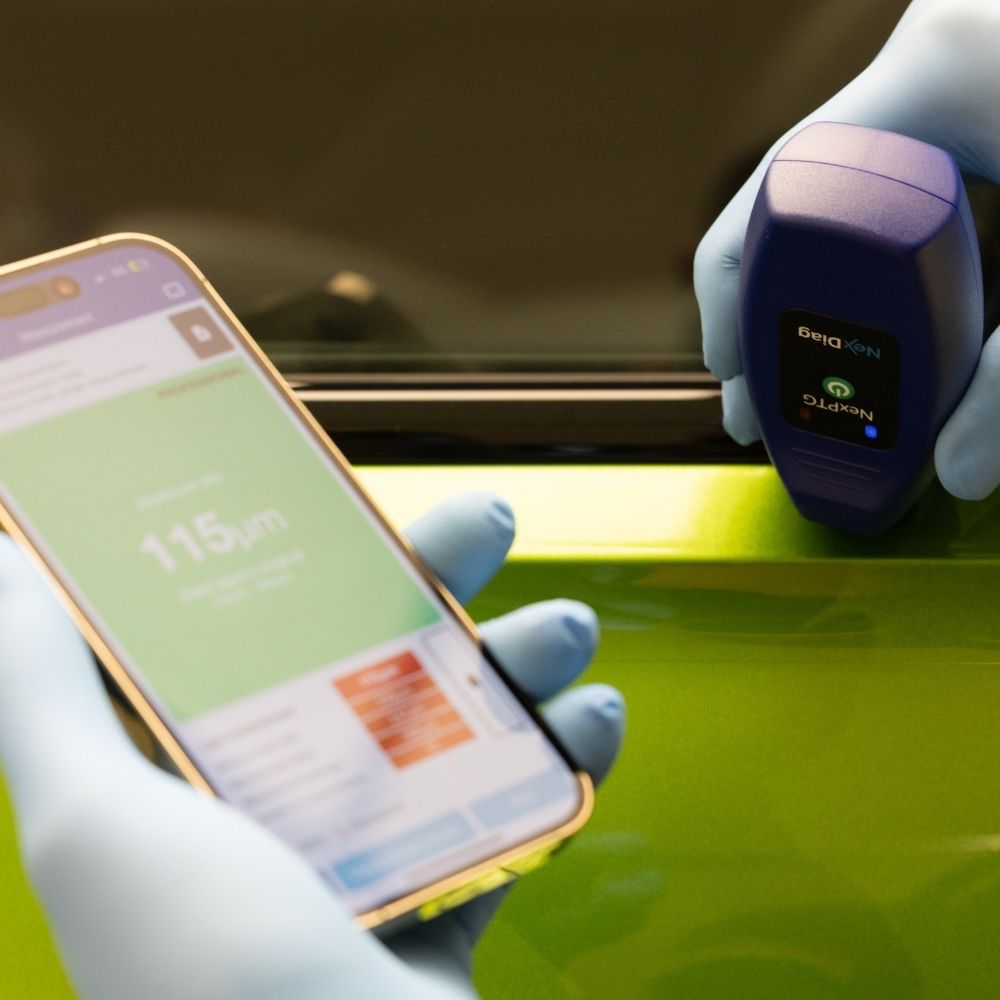

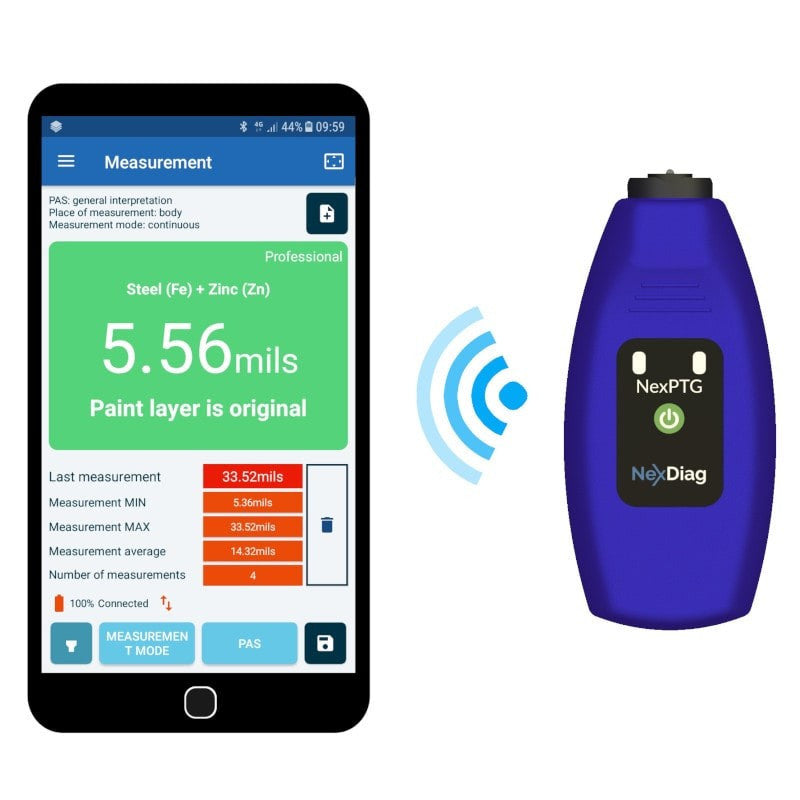

• NexPTG has a dedicated app. You can install it on any mobile device equipped with iOS or Android.
• With the dedicated app, you can examine the paint layer with unprecedented accuracy and precision.
• Thanks to the paint coating analysis system, you can instantly analyze the paint on the entire body surface, and the app helps you interpret the measurement results.
• No other device on the market offers such capabilities.

Measurement range	0 - 2500 µm
Measurement resolution	1 µm
Number of measurements per second	10
Measurement memory	up to 4000
Probe type / probe tip	Movable / Spherical
Probe housing	Profiled
Curve measurement	Yes
Operating temperature range	-20 - +40 degrees
Units of measurement	µm or mils
Substrate tests	Steel, galvanized steel, aluminium
Communication with smartphone	Bluetooth 4.0 LE
Housing color	Blue
System availability	Android, iOS
Supported batteries	2 x AA
Measurement modes	Continuous, Single
Testing relative to reference point	Yes
Automatic shutdown on inactivity	Yes
Measurement statistics	Yes
Paint coating analysis system - SAPL	Extended
Enriched with new features	Yes
Suggested measurement points	Yes
Buying guide	Yes
Export of measurement history	Yes
Report creation	Yes
API communication	Yes
Dedicated API	Yes

Minimum smartphone system requirements for using the NexPTG app

Android: Smartphone, Tablet

• Android 4.3 or newer, Bluetooth with Bluetooth Low Energy

iOS: Smartphone, Tablet

• iOS 8 or newer, iPhone 5s or newer

Android Wear: Smartwatch

• Any smartwatch with this system

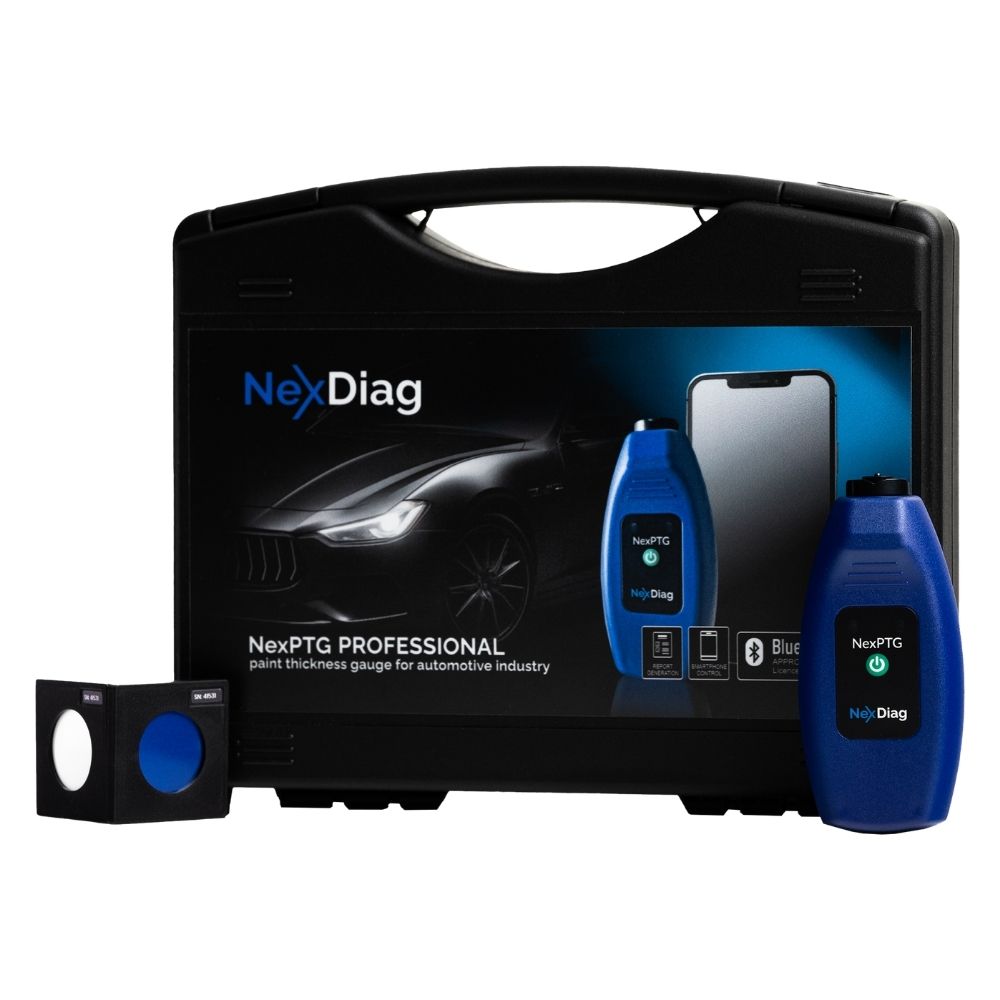

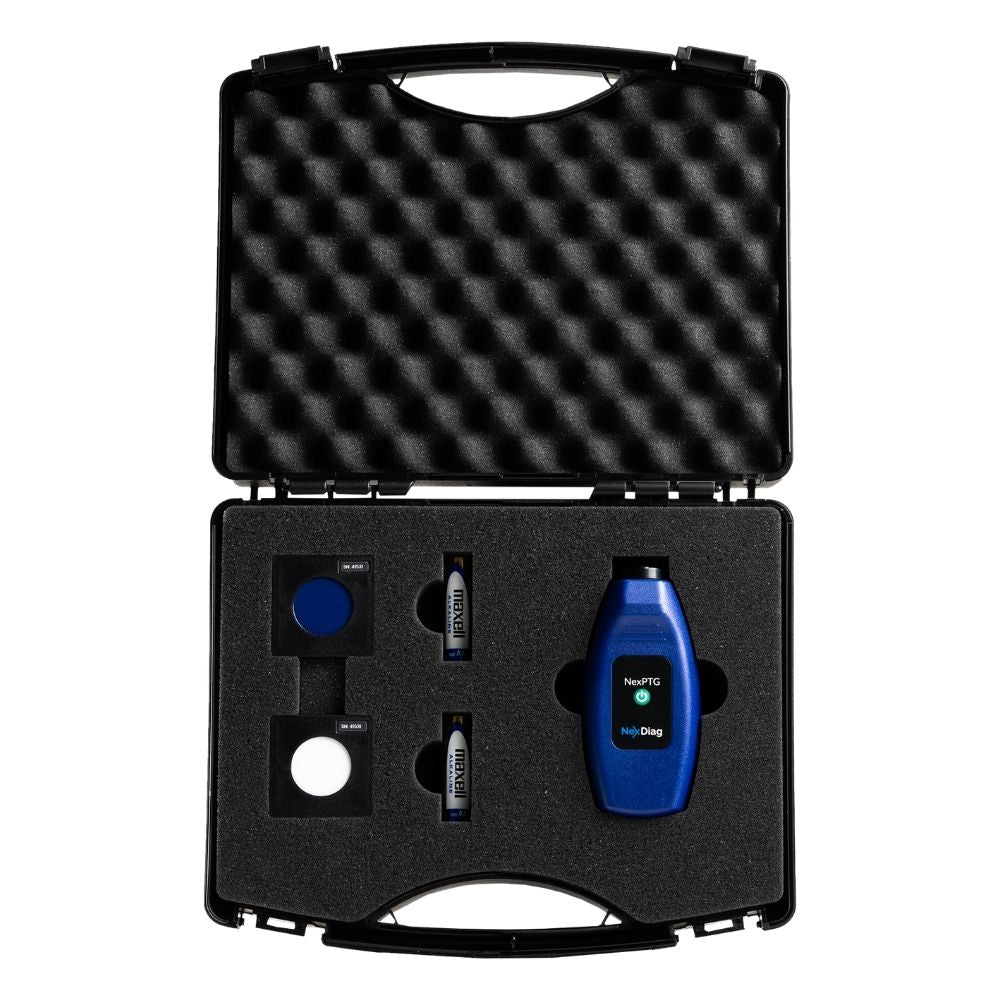

Package contents:

• NexPTG Professional device
• Calibration set (for steel and aluminium)

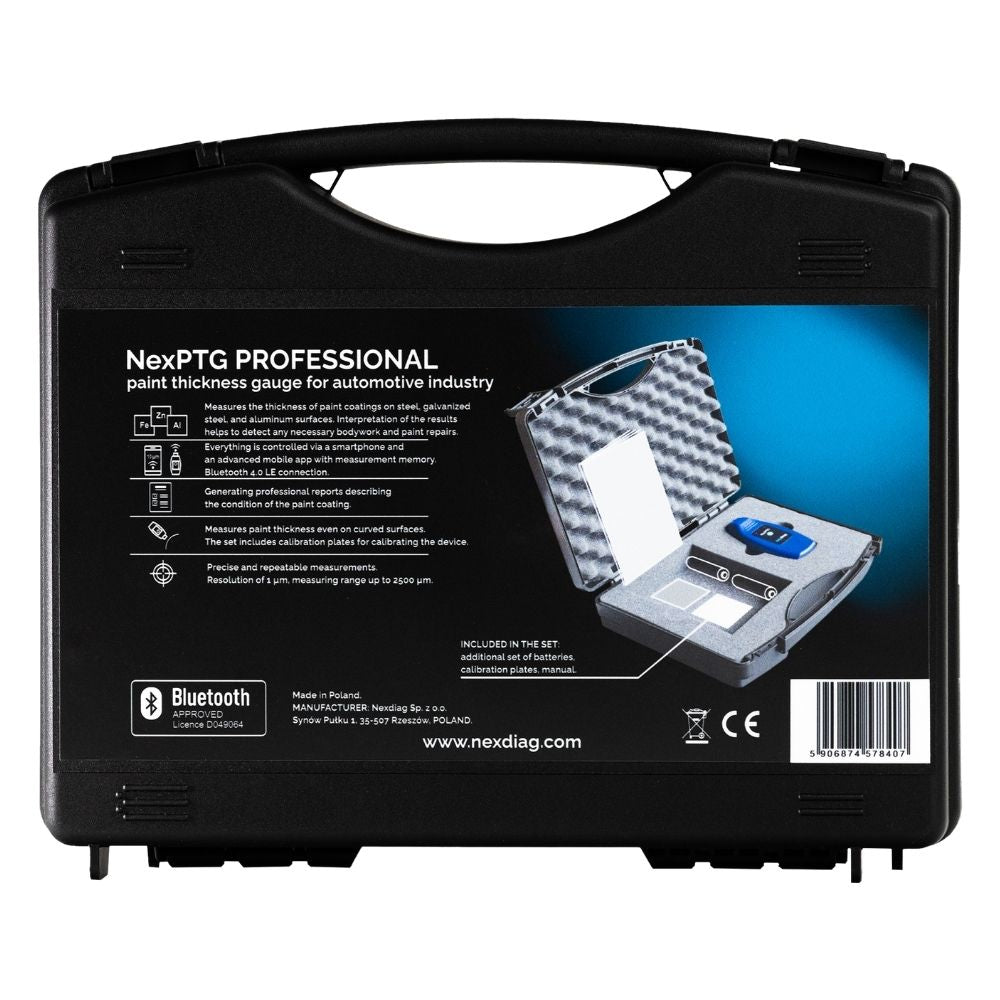

• Carrying case
• Multilingual manual (including German)
